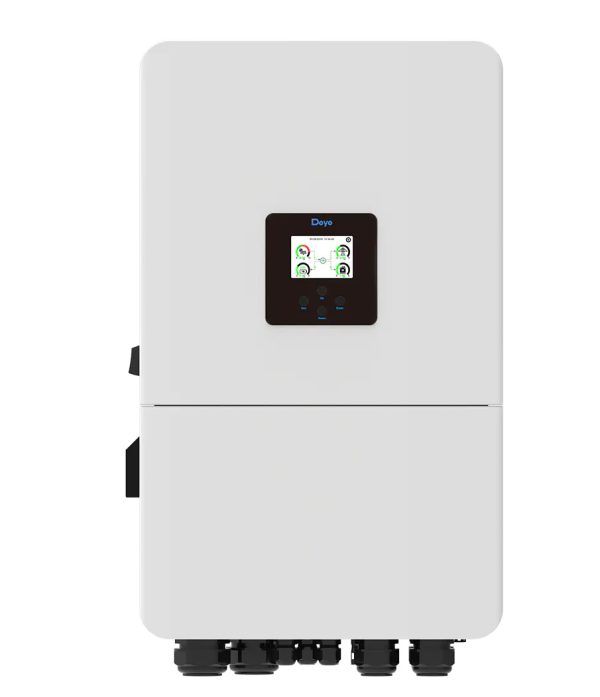

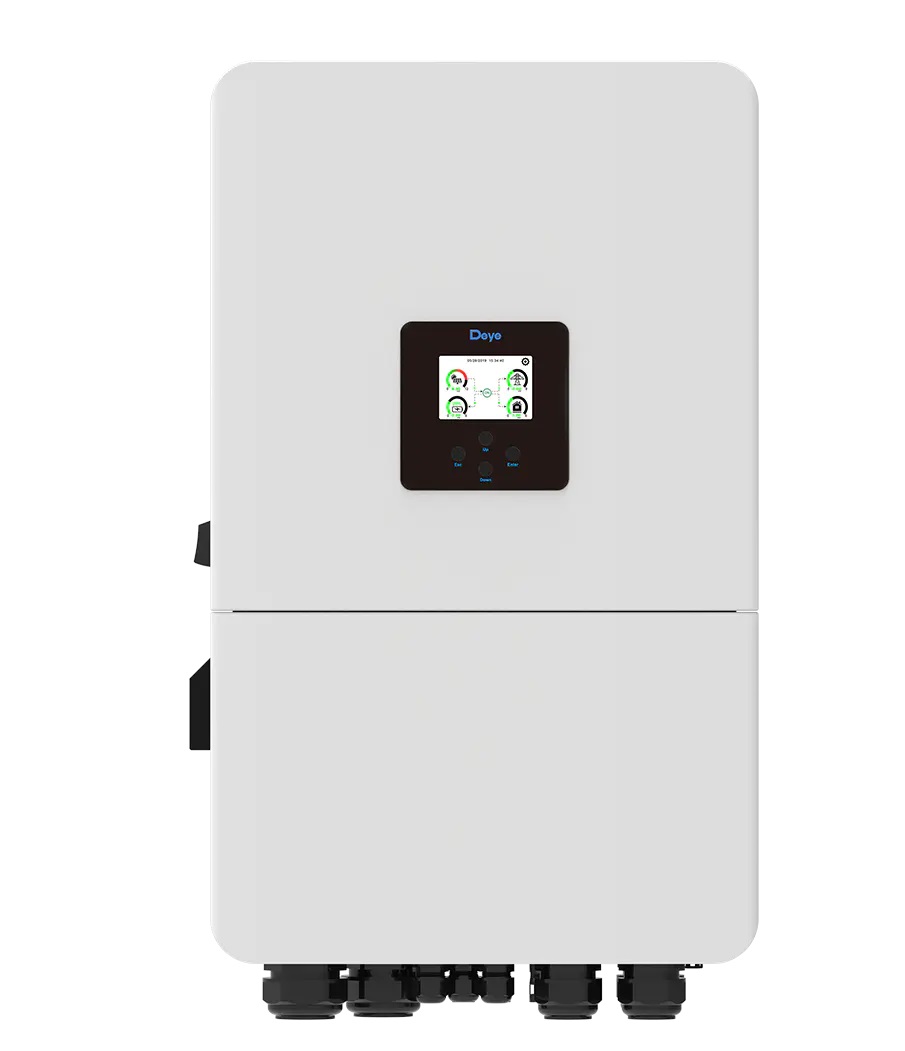

Deye 20kw 48v inverter

Description

Deye 20kw 48v inverter

• Model: SUN-20K-SG05LP3-EU-SM2
• Battery Compatibility: Lead-acid or lithium-ion with BMS auto-adaptation
• Battery Voltage Range: 40–60V
• Max. Charging / Discharging Current: 350A
• Max. PV Input Power: 33,000W
• PV Input Voltage Range: 160–850V (MPPT range: 160–650V)
• No. of MPPTs / Strings per MPPT: 2 / 2+2
• Rated AC Output Power: 20,000W
• Max. AC Apparent Power: 22,000VA
• Rated Output Voltage: 230/400V, 3-phase (3L+N+PE)
• Peak Power (Off-grid): 40,000W for 10 seconds
• Efficiency: Max. 97.6%, European efficiency 97.0%
• Unbalanced Output Support: 100% unbalanced, up to 50% of rated power per phase
• Surge Protection: Type II (DC & AC)
• Certifications: IEC 61727, IEC 62116, VDE-AR-N 4105, CEI 0-21, and others
• Operating Temperature: -40°C to +60°C (derating above 45°C)
• Cooling Method: Intelligent air cooling
• Dimensions: 456 × 750 × 268.5 mm
• Weight: 51.9 kg
• Ingress Protection: IP65-rated for outdoor installation
• Interfaces: RS485, RS232, CAN, GPRS/WiFi/Bluetooth/4G/LAN (optional)
